Fantail Launch, by Bolger - STUDY PLAN-
Roll over image to zoom in Click on image to zoom
Fantail Launch, by Bolger - STUDY PLAN-

Fantail Launch, by Bolger - STUDY PLAN-

1 review
Format: Digital
Price:
$0.99

Description

Single Study Plans are Only Available as Digital Downloads

Designed by Philip C. Bolger.

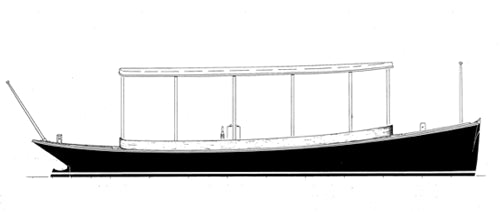

This exquisite launch leaves little wake at five knots. Her plans show both cold-molded and plank-on-frame construction.

LOA - 23'
LWL - 20' 9"
Beam - 6'
Draft - 1' 10"
Displ. 2,700 lbs.
Construction: Cold-Molded or Carvel planked over steamed frames.
Skill level: Advanced.
Lofting is required.
Plans include 5 sheets.



————————————————————

“Your downloads are ready” will be the subject line of an email you’ll receive from us—once we’ve processed your digital order. That email has the link to click, so you can then download the file.

This isn't an "instant" process, so if we're asleep, you may need to wait for regular business hours for us to process the order. Although we are quite timely, we may not be processing on weekends & holidays.





Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
J
Jim Hausch
Some additional specs would be nice

It would be nice if the study plan revealed a few more specs. I'd like to build an electric version. Knowing the approximate empty weight range, weight of engine in the design, and weight at the various waterline marks would be wonderful.

You'll see the displacement actually listed on the study plans. Bolger did not spec a particular engine, but instead a range of 10-15hp. That's foresight on Bolger's part, given that engine mfg come and go. So, looking on-line, a Yanmar 10hp is about 160lbs. Hope that helps.
