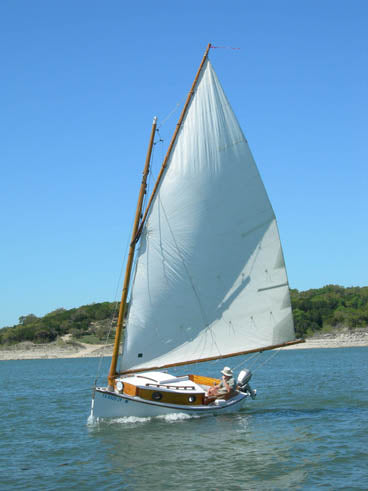

Wittholz 17' Catboat

Product Description
$90.00
Maximum quantity available reached.

Please use the "pull-down" to select the format you want to order... Print or Digital.

V-bottomed cruiser designed for plywood construction with accommodations for two and inside ballast.

Designed by Charles Wittholz

LOA - 17' 1"
LWL - 16' 7"
Beam - 7' 10"
Draft (cb up) - 1' 9"
(cb down) - 4' 3"
Weight - 2,400 lbs.
Sail Area: Gaff - 220 sq. ft. Marconi - 210 sq. ft.
Construction: Plywood planking over sawn frames
Lofting is required
Skill level: Intermediate
Plans include 11 sheets, plus 3 pages of additional notes from the designer.

If ordering Digital plan sets: These files are in PDF format. This design has no full-sized mold patterns, so could be printed on letter or tabloid size paper, if you want to save printing costs.

————————————————————

“Your downloads are ready” will be the subject line of an email you’ll receive from us—once we’ve processed your digital order. That email has the link to click, so you can then download the file.

This isn't an "instant" process, so if we're asleep, you may need to wait for regular business hours, Mon-Fri 8am-6pm (-5 GMT) for us to process the order. Although we are quite timely, we may not be processing on weekends & holidays.



Sku: 400-048
