Eldridge-McInnis 25' Bassboat

Product Description
$150.00
Maximum quantity available reached.

Designed by Eldridge-McInnis

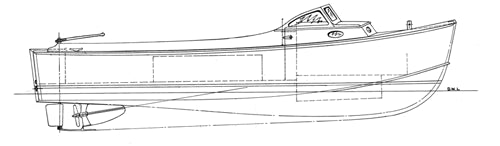

Safe, dry, fast, and seaworthy V-bottomed inboard powerboat designed for carvel planking.

See WoodenBoat #12 for a design commentary on the 24' version.

LOA - 25' 1"
LWL - 23' 6"
Beam - 8' 7 1/2"
Draft - 2' 2"
Displ. - 5,358 lbs.
Construction: Carvel planked over sawn frames
Alternative construction: Strip
Skill level: Advanced
Lofting is required

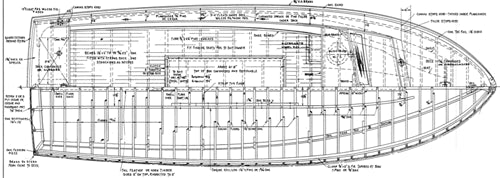

Plans include 6 sheets.



Sku: 400-052
