Alden 21' Double Ender Boat

Product Description
$135.00
Maximum quantity available reached.



Designed by John G. Alden

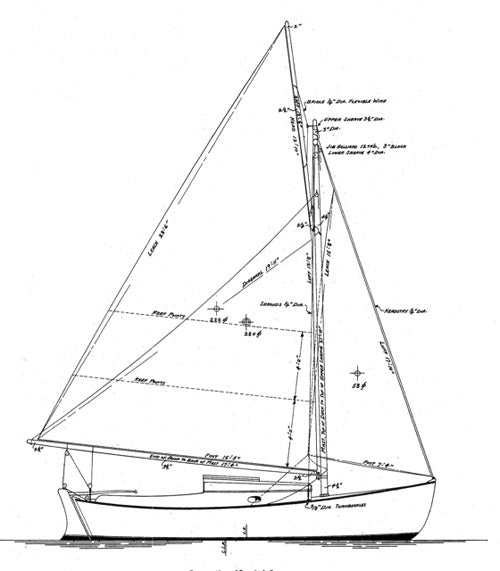

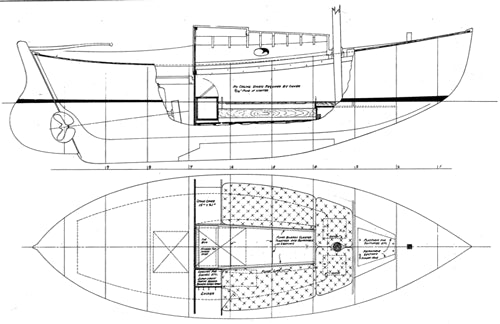

A trim, rugged, carvel-planked cruiser with simple accommodations for two and a choice of gaff or marconi rig.

LOA - 21' 2"
LWL - 18' 7"
Beam - 7' 0"
Draft - 3' 0"
Displ. - 4,635 lbs.
Sail Area :
Gaff - 280 sq. ft. Marconi - 282 sq. ft.
Construction: Carvel planked over steamed frames
Alternative construction: Cold-molded or strip
Lofting is required
Skill level: Advanced
Plans include 7 sheets, plus 3 pages of additional notes from the designer.

More info: click MATERIALS LIST

Sku: 400-001
