21' Sjogin STUDY PLAN -

2 reviews

Format: Digital
Sale price$0.99


Single Study Plans are Only Available as Digital Downloads

Designed by Paul Gartside

LOA: 21' 5"
LWL: 19' 1"
Beam: 8' 6"
Draft: 2' 11"
Ballast: 1150 lbs
Displacement: 4170 lbs

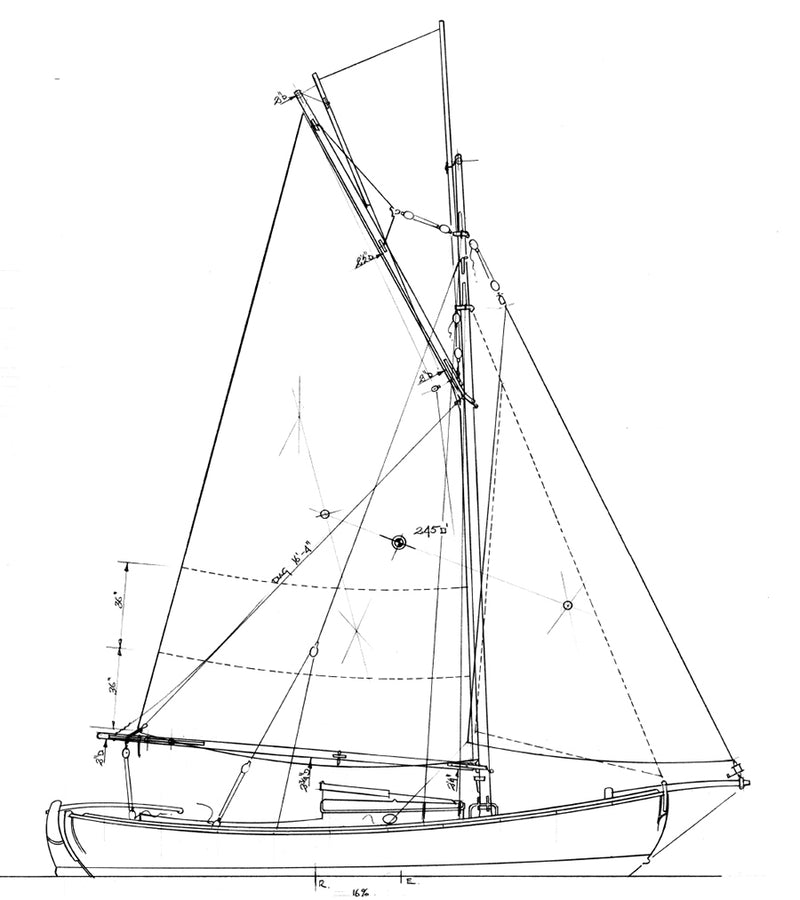

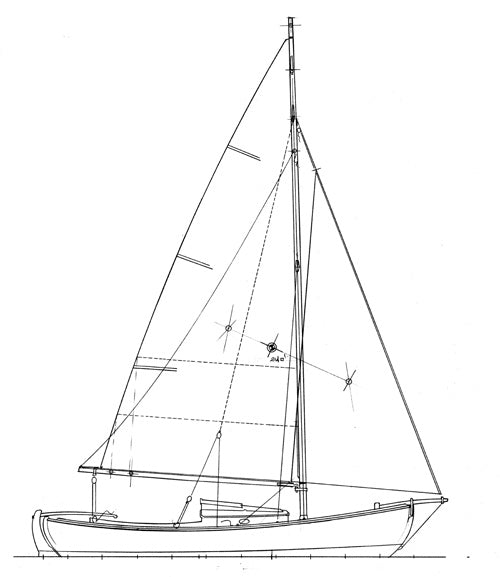

Sail area: 214-245, depending on rig... several rig options
Building Skill: intermediate to advanced
Construction: glued lap ply, tradtional lapstrake (clinker), or cold-molded

Considered a Norwegian Koster boat, Sjogin (pronounced So gin, accent on So) origins are unclear, and no building plans were available. Owner Russ Manheimer and friends took the links off Sjogin as several people were very interested in building this pretty boat. Word spread because of Russ's enticing blog "Hove-to Off Swan's Point" as well as frequent contributions on our WoodenBoat Forum. They approached Paul Gartside, and the results are a beautifully drawn set (12 sheets!) of plans. A lot of folks seem to feel this boat is "about right" and we expect to see more come to life. For more of her story, see WoodenBoat 247 (linked below). That's Sjogin and Russ on the cover.




“Your downloads are ready” will be the subject line of an email you’ll receive from us—once we’ve processed your digital order. That email has the link to click, so you can then download the file.

This isn't an "instant" process, so if we're asleep, you may need to wait for regular business hours for us to process the order. Although we are quite timely, we may not be processing on weekends & holidays.



Customer Reviews

Based on 2 reviews
Jim Fulton
Just looking.

I bought this STUDY PLAN just see what a study plan looks like. Two sheets, about what I expected. I spent over 25 years as a mechanical draftsman (the new term is CAD) designing machine type parts. Just wanted to see a sample of a boat drawing. Nice!

John Evans
I am Most Passionate for this Vessel

A beautiful and charming design with a construction methodology that is aesthetically pleasing to the eye. I wish to build this little charmer. Great lines, and I like the little stove onboard.
