20' Seaclipper

Product Description
$300.00
Maximum quantity available reached.

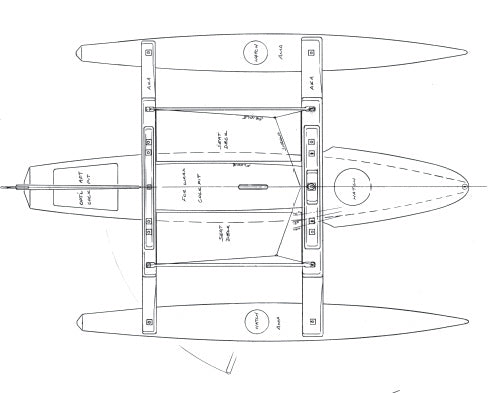

Designed by Jim Brown and John Marples, this is ideal for the home builder. Unique for trimarans are the "swing wing" cross beams (akas) which allow quick/easy folding for trailering or fitting in tight spots--and you don't unrig the mast to do so. Construction is sheet plywood, and for a rig several standard rigs are suggested including a Hobie 16. Plans include 12 pages, plus there's a 37 construction manual.

Particulars:

LOA: 20'
LWL: 19'
Beam: 15'6" (sailing)
Beam: 8'6" (trailering... street legal!)
Draft: 11" board up
Draft: 3'2" board down
Weight: 800 lbs
Sail area: 200-230 sq ft

Skill needed: Basic to Intermediate

There was a design review in WoodenBoat. See WB 217 below. And see WB 69 below for a profile on Jim Brown.

Sku: 400-165
