18'6 Redwing - STUDY PLAN-

1 review

Format: Digital
Sale price$0.99


Single Study Plans are Only Available as Digital Downloads

Designed by Karl Stambaugh.

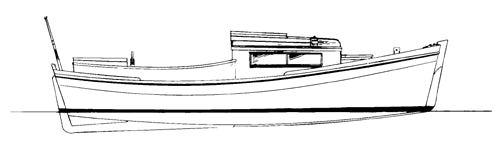

Redwing- a gentle, shoal-draft, low-powered (5 to 10-hp), sheet-plywood outboard cruiser - can live on her trailer. Whenever you wish, she'll be ready to go exploring.

LOA - 18' 6"
LWL - 17' 1"
Beam - 6' 6"
Draft - 1'
Displ.(equipped) - 1,250 lbs.
Construction: Plywood planking over sawn frames, OR stitch and glue (yes, plans include stitch and glue details)
Skill level: Intermediate.
Lofting is required.
Plans include 10 sheets.

How fast will she go?
5hp: 5 knots
10hp: 6 to 7 knots
15hp: 8 to 9 knots
20hp: 12 knots
At 12 knots she is pushing a lot of water
A Honda 9.9 four stroke is ideal power.
