16' Melonseed

1 review

Format: Print
Sale price$90.00


Be sure to select PRINT or DIGITAL when you order.

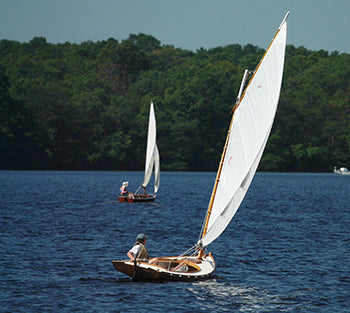

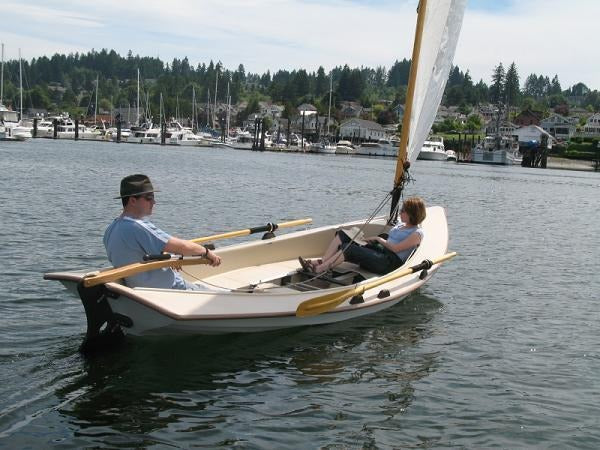

Lapstrake-plywood daysailer with a shapely wineglass transom, unstayed sprit rig, and wide, flat, keels, for easy trailering.

Designed by Marc Barto from lines of Howard Chapelle

LOA - 16'
LWL - 15' 2"
Beam - 4' 10"
Draft (cb up) - 4"
(cb down) - 2"
Weight - about 250 lbs.
Sail Area (gaff) - 90 sq. ft.
Construction: Lapstrake (6mm) plywood planking over steam bent frames (alternative: 1/4 bead and cove with a 1/8" veneer overlay, so cold-molded)
No lofting is required
Skill level: Intermediate
Plans include 7 sheets, plus 4 pages of additional notes from the designer.

Click here for: MATERIALS LIST.


Melonseed was featured in Boat Design Quarterly #29.


Please note: this plan is considered an intermediate skill level. It may be that advanced skills are helpful. Although we've offered these plans since the 1990s, it has recently been brought to our attention there are some discrepancies in some measurements. Most builders have worked around that. The best way to handle the discrepancies: loft.

We've decided to continue to offer the plans because many beautiful boats have been built and sailed. If you choose this design there is a wealth of knowledge about it online in various blogs, on the WoodenBoat Forum and two sites under the "Building Projects" section of our RESOURCES page. You'll find true inspiration there.

If ordering Digital plan sets: These files are in PDF format.  Some designs will have just a single page needed to be printed on large paper... typically if they had full-sized mold patterns. Other pages could be printed on letter or tabloid size paper, if you want to save printing costs. You'll see a measurement on pages that have full-sized drawings, so your local print shop will just need to print to that size.

And, if you are ordering the Digital plans, you can also order the How-to book as a PDF (see below).


“Your downloads are ready” will be the subject line of an email you’ll receive from us—once we’ve processed your digital order. That email has the link to click, so you can then download the file.

This isn't an "instant" process, so if we're asleep, you may need to wait for regular business hours for us to process the order. Although we are quite timely, we may not be processing on weekends & holidays.

Customer Reviews

Based on 1 review
Joseph Cast
Sufficiently complete set of plans

I like the plans. The 7 pages of plans and 3 pages of build instructions are adequate provided you possess enough boat building knowledge to find the discrepancies. Some of the hand-written numbers on the plans are difficult to read. The build instructions are fairly basic so you get to work out many of the details yourself, hence the joy of boat building! Recommend that before you begin, you take enough time to study the plans in order to discover the few discrepancies, as the description implies. The intermediate skill level that is required seems fairly accurate.
