16' Haven 12 1/2 Class

Product Description
$180.00
Maximum quantity available reached.

Please use the "pull-down" to select the format you want to order... Print or Digital.

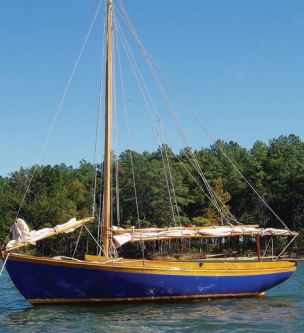

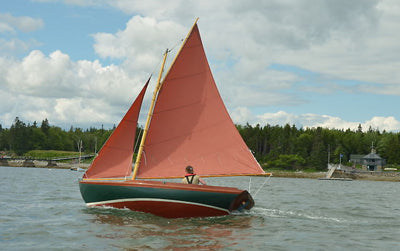

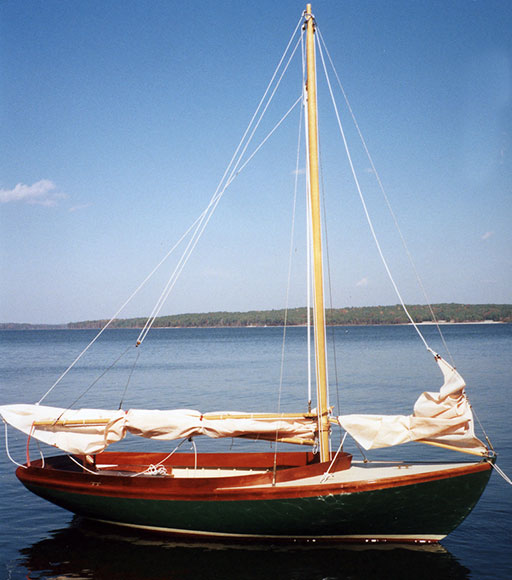

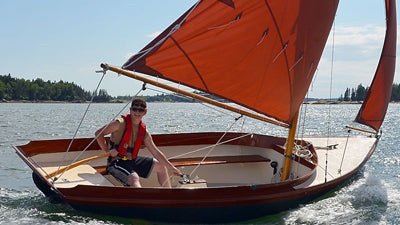

A handsome daysailer based on the Herreshoff 12 1/2, but modified for a centerboard. The "12" refers to the waterline length....

Designed by Joel White

LOA -16'
LWL - 12' 6"
Beam - 6' 1"
Draft (cb up) - 18"
(cb down) - 3' 4"
Displ. - 1,409 lbs.

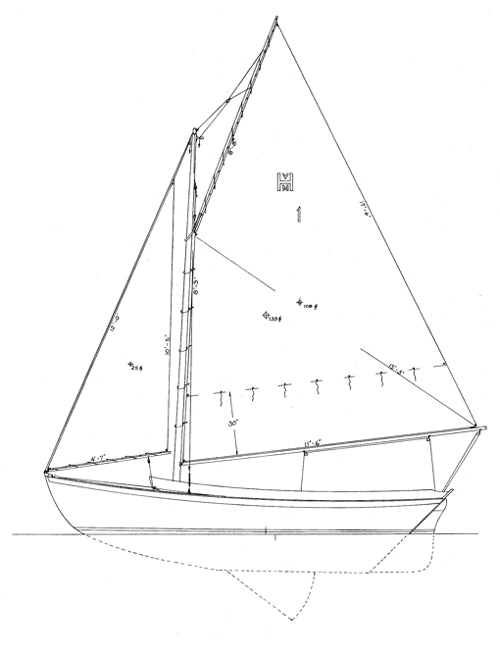

Sail Area: Gaff - 133 sq. ft.
Marconi - 133 sq. ft.
Construction: Carvel planked over steam-bent frames
No lofting required, and no offsets are provided.
Skill level: Advanced

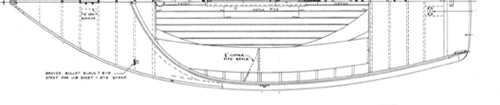

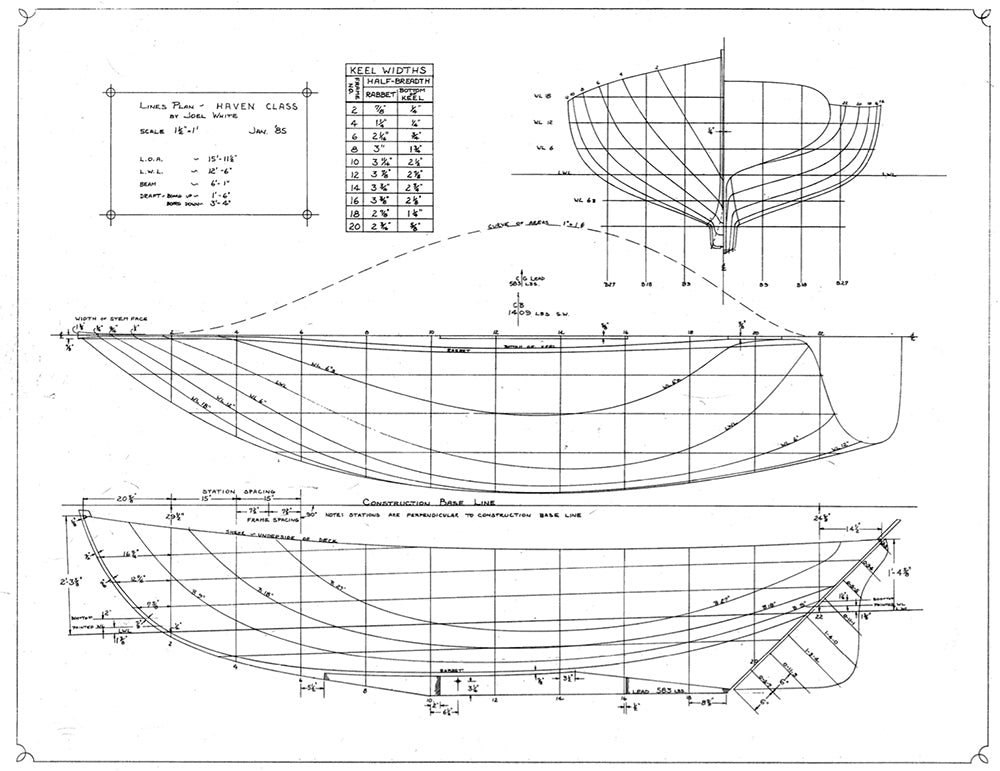

Plans include 8 sheets, plus 1 page of additional notes from the designer.

  If ordering Digital plan sets: These files are in PDF format.  Some designs will have just a single page needed to be printed on large paper... typically if they had full-sized mold patterns. Other pages could be printed on letter or tabloid size paper, if you want to save printing costs. You'll see a measurement on pages that have full-sized drawings, so your local print shop will just need to print to that size.

————————————————————

“Your downloads are ready” will be the subject line of an email you’ll receive from us—once we’ve processed your digital order. That email has the link to click, so you can then download the file.

This isn't an "instant" process, so if we're asleep, you may need to wait for regular business hours for us to process the order. Although we are quite timely, we may not be processing on weekends & holidays.



Sku: 400-075
