16' Catbird - STUDY PLAN -

No reviews

Format: Digital
Sale price$0.99


Single Study Plans are Only Available as Digital Downloads

Designed by Karl Stambaugh.

The flat-bottomed hull will go together easily from sheet-plywood and epoxy in stitch-and-glue fashion. Stambaugh tells us to assemble Catbird by bending pre-cut plywood panels for the bottom (1/2") and sides (3/8") over seven transverse frames.

LOA - 16'0"
Beam - 5'4"
Draft (cb up) - 1'0"
(cb down) - 2'0"
Weight - 350 lbs

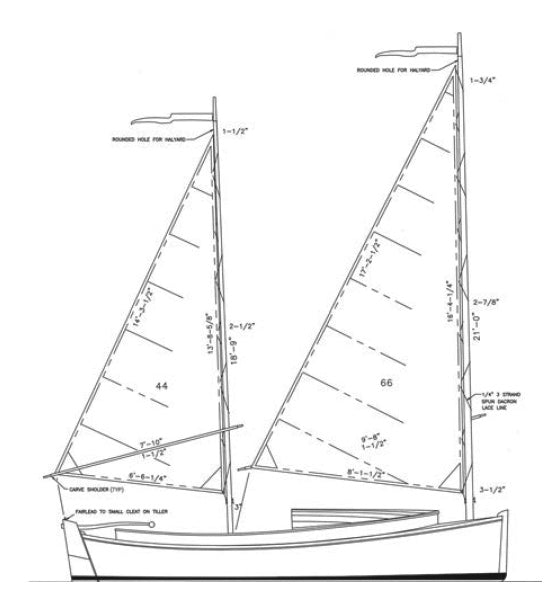

Sail area: (ketch) 110 sq.ft.
(yawl) 118 sq. ft.
Construction: stitch and glue plywood panels shaped over plywood frames. No lofting is required.
Plans include 7 sheets.



“Your downloads are ready” will be the subject line of an email you’ll receive from us—once we’ve processed your digital order. That email has the link to click, so you can then download the file.

This isn't an "instant" process, so if we're asleep, you may need to wait for regular business hours for us to process the order. Although we are quite timely, we may not be processing on weekends & holidays.



Note: this design was reviewed by Mike O'Brien in WB 252, Sept/Oct 2016.
