15'8 OUGHTRED Stickleback Dory (Amberjack)

Product Description
$144.00
Maximum quantity available reached.

Good dories have a reputation for being difficult to design but easy to build. Iain Oughtred has taken care of the hard work here - you can't go wrong with his detailed plans for this lapstrake (plywood) Swampscott derivative.

Designed by Iain Oughtred

LOA - 15' 8"
LWL - 12' 2"
Beam - 4' 5"
Draft (db up) - 6"
(db down) - 2' 8"
Weight about 125 - 150 lbs.
Sail Area: 40 - 57 sq. ft.
Construction: Glued lapstrake plywood over sawn frames
Alternative construction: Traditional dory construction
No lofting required
Skill level: Basic to Intermediate

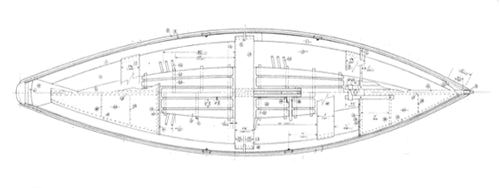

Plans include 4 sheets, plus 18 pages of additional notes from the designer.

More info: click MATERIALS LIST.

Sku: 400-086
