Resembling her 8' cousin more than the sleeker 12' Acorn, this chunky dinghy will be a good load carrier for her length - and she looks very, very British. Oughtred saves you from guess work by showing precisely how her planking should be lined off.
Designed by Iain Oughtred
LOA - 10' 2"
LWL - 9" 10"
Beam - 4' 2"
Draft (db up) - 6"
(db down) - 2' 5"
Weight about 100 lbs.

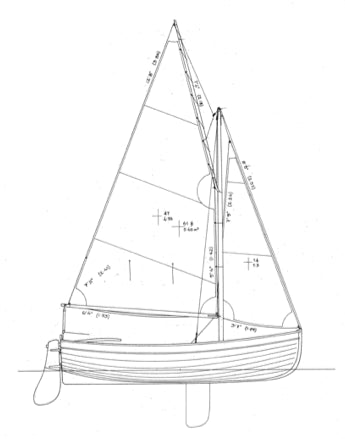

Sail Area: Lug Rig - 49 sq. ft.
Gunter Sloop - 65 sq. ft.
Construction: Glued lapstrake plywood
No lofting required
Skill level: Basic to Intermediate

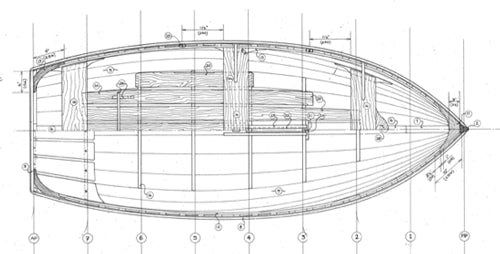

Plans include 6 sheets, plus 19 pages of additional notes from the designer.
Click here for: Materials List.
Great set of plans. Looking forward to the build.
10'2 OUGHTRED Acorn (Puffin)
